Description
fpv goggles with head tracking Walksnail Avatar HD Goggles L – HD FPV Goggles with Head Tracking, 4.5 – RCDroneOverview Walksnail Avatar HD Goggles L Only are HD FPV goggles built around a single 4. 5 inch LCD, combining an integrated nineaxis headtracking sensor with the Avatar HD digital video system for 1080p 60 viewing. The design focuses on image clarity, low latency, and simple field operation for FPV drones, fixedwing models, and RC vehicles. Key Features Integrated head tracking: nineaxis gyro captures head motion and, when paired to a compatible
Overview

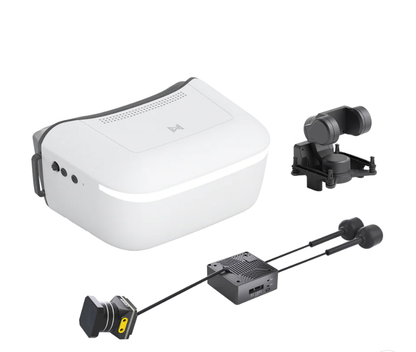

Walksnail Avatar HD Goggles L Only are HD FPV goggles built around a single 4.5 inch LCD, combining an integrated nine‑axis head‑tracking sensor with the Avatar HD digital video system for 1080p/60 viewing. The design focuses on image clarity, low latency, and simple field operation for FPV drones, fixed‑wing models, and RC vehicles.
Key Features
- Integrated head tracking: nine‑axis gyro captures head motion and, when paired to a compatible gimbal, controls camera pan/tilt via the video link.
- Avatar HD image transmission with H.265 encoding for 1080p60 or 720p60 FPV video and responsive control feel.
- PPM signal output via the 3.5 mm headphone TX connector for connection to a radio controller.
- Optical system designed for distortion‑free 1920×1080 imaging on a single 4.5 inch HD display with wide 75° FOV.
- Onboard Micro SD slot for one‑touch DVR recording; supports up to 256 GB.
- High‑performance LHCP directional antenna with average gain up to 4.9 dBi for a stable link.
- 2–6S (6–25.2 V) input range for flexible power from common flight packs.
- Detachable lens frame supports nearsighted, farsighted, or blue‑light‑filter lenses.
- Compatible with all current Walksnail VTX models.
- Front light bar adds a functional illuminated accent.
- PU foam face pad reduces light leakage and improves comfort.
Specifications
| Model | Avatar HD Goggles L |
| System | Avatar HD System |
| Communication Frequency | 5.725–5.850 GHz |
| Transmitter Power (EIRP) | FCC: <30 dBm; CE: <14 dBm; SRRC: <20 dBm; MIC: <25 dBm |
| I/O Interface | 4‑Pin 3.5 mm plug; DC5.5*2.1mm; Micro SD card slot |
| Gyro | Nine‑axis gyroscope |
| Transmission Resolution | 1080p60fps; 720p60fps |
| Code Rate | Max 50 Mbps |
| Minimum Latency | Average 32 ms |
| Antenna Average Gain | 4.9 dBi |
| Polarization | LHCP |
| Transmission Distance | > 4 km |
| Channels | 8 |
| Screen Resolution | 1920*1080/60Hz |
| Screen Material | LCD |
| FOV | 75° |
| Screen Size | 4.5 inch |
| Power Input | 6 V–25.2 V (2S–6S) |
| SD Card Support | Up to 256 GB |
| Net Weight | 350 g +/- 10 g |
What’s Included
- Straight DC5.5‑XT60 power cord x1
- Storage bag x1
- Lens cleaning cloth x1
Need help with setup, compatibility, or after‑sales support? Contact [email protected] or visit https://rcdrone.top/.
Applications
- FPV drones
- Fixed‑wing models
- RC cars
Details
Avatar HD Goggles L feature a 4.5" 1080P screen, head tracker support, and new optics for immersive VR.
